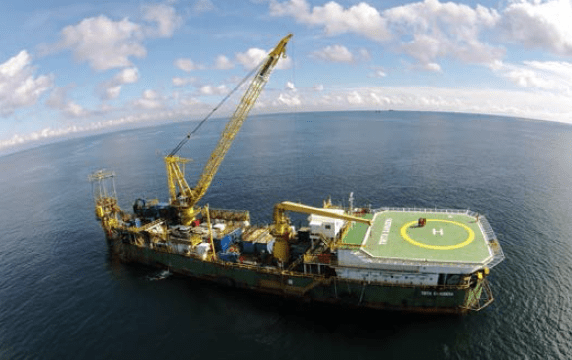

172 Pax Crane/Accommodation Work Barge Sale
172 Pax Crane/Accommodation Work Barge Sale
Year/Rebuilt: 1975/2002
Built: Jakarta, Indonesia
Class: ABS + MODU
DIMENSIONS
Length Overall: 86.56m
Breadth Moulded: 18.29m
Depth Moulded: 8.61m
Max Draft: 3m
Displacement: 7,403MT
Cargo Deck Area: 700m?
Deck Strength: 10 tons/M?
MOORING SYSTEM
Mooring Winches: 4 x ‘SKAGIT DMW 150’ double
side drum independent motor driven
Fair Lead: 8 x ‘SKAGIT DWF-30’ Fairleads
Wire Size/Length: 8 (plus 1 spare coil) x 50.8mm
6 x 36 IWRC flexible steel wire
Anchor + Buoy: 9 x high holding power anchors
c/w foam filled buoys
OFFSHORE CRANE
Main Crane: ‘Techcrane’ Offshore Pedestal Crane
Capacity: 175 MT SWL with 8 part lines
82 MT SWL with 4 part lines
Auxiliary hoist of 10mt
Crane Boom: 160 feet Boom
Maximum Boom Angle: 81 degrees
Auxiliary Crane: 5-MT Fixed Boom Hydraulic Crane.
ACCOMMODATION
Number of Bed: 172
Cabins Layout: 1 x 1 pax = 1 pax
10 x 2 pax = 20 pax
1 x 3 pax = 3 pax
4 x 4 pax = 16 pax
22 x 6 pax = 132 pax
Total: 38 cabins = 172 pax
TANK CAPACITIES
Fuel Oil Capacity: 900m3
Fresh Water : 314m3
Water Ballast: 1,012m3
HELIDECK
Dimension: 23.16m X 22.55m
Standard: In compliance to ‘MODU CODE’ & carry full
classification certification
Helicopter: Sikorsky S61N
AUXILIARY EQUIPMENT
Generators: 4 x Caterpillar D399 Power Modules with
Kato 1030 KW AC Generators
2 x Caterpillar D343 with Alternator
300 – 350 KW
Life Jackets: In compliance to SOLAS
Life Rafts: 15 x 25 men inflatable life rafts
Life Buoys : 8 x Perry Buoys DTI approved type
Fast Rescue Craft: Rigid type of 6 men cap. c/w 30 hp
motor fitted with quick launching & recovery davit
Fire Fighting Equipment: Fire Pump – 1
Fire Monitor – 2
E.R. Fire Detection System.
Location: Asia.
