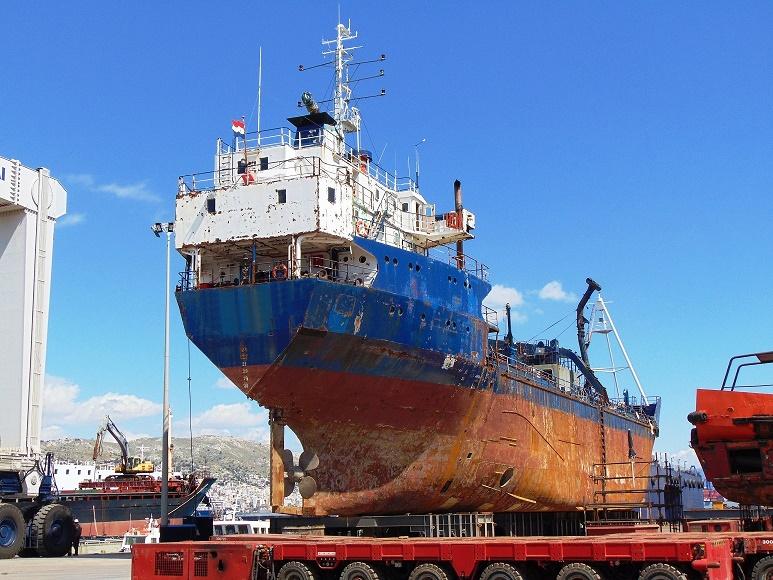

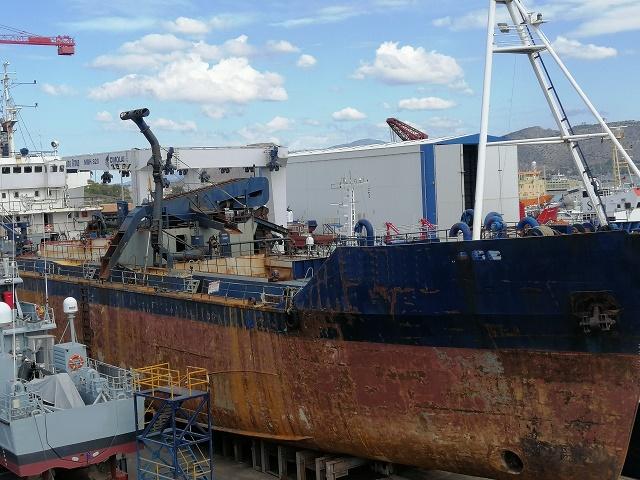

3297 DWT Trailing Suction Hopper Dredger Sale
3297 DWT TRAILING SUCTION HOPPER DREDGER SALE
TRAILING SUCTION HOPPER DREDGER
STEEL/ ICE CLASS NOTATION E1 AT 6.19M DRAFT
CLASS INSB
DWT 3297
GT/NT 2062/624
BUILT 1975, BRATTVAG SKIPSINNREDNING AS, NORWAY
LENGTHENED 1977
CONVERTED 1979
REBUILT 1991/2006
LOA 84.61M
BEAM 13.00M
MOULDED DEPTH 7.60M
DRAFT 6.185M
DOUBLE BOTTOM
M/E 1 X ABC, 1766KW @ 900RPM
GENS 1 X 1150KVA +3 X 162KVA EACH
REDUCTION GEAR
ELECTRICAL INSTALLATIONS 1 X PLANT 486KVA + 1 X PLAN 1150KVA
2 X COMPRESSED AIR RECEIVERS
CPP
SPEED 12KN
UNATTENDED MACHINERY SPACES
GRAIN CAPACITY 2039CBM
BOW THRUSTER 295KW
STERN THRUSTER 920KW
2 X BOWER ANCHORS 1590KG EACH
FUEL TANKS CAP 164CBM
BALLAST WATER TANKS CAP 1103CBM
DOUBLE BOTTOM
CONTINUOUS FROM PEAK TO PEAK BULKHEAD.
LOCATION GREECE.
NOTES: NO BOTTOM DOORS, NO SPLIT HULL.
PREVIOUSLY WITH DNV-GL CLASS (NOTATION +100A5K, FLASH POINT> 60O
SUCTION DREDGER, BUCKET DREDGET, OIL RECOVERY VESSEL +MC AUT).
Owners last year conducted a lot of works (Vessel has been sandblasted, the tailshaft has been removed, main engine/gens/suction pumps have been overhauled and abt 50t steel plates have been changed).
